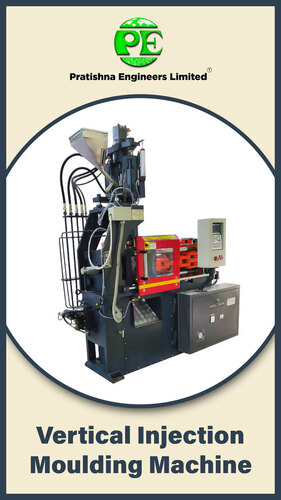

PV Series Injection Molding Machines
1450000.0 INR/Piece
Product Details:
- Product Type jewelry box, electric switches & junction box, pet prefor
- General Use Industrial
- Material Other
- Computerized Yes
- Automatic Yes
- Voltage 220-440 Volt (v)
- Color Blue,Black
- Click to view more
X
PV Series Injection Molding Machines Price And Quantity
- 1450000.00 - 3200000.00 INR/Piece
- 1450000.0 INR/Piece
- 1 Piece
PV Series Injection Molding Machines Product Specifications
- jewelry box, electric switches & junction box, pet prefor
- Yes
- 220-440 Volt (v)
- Yes
- Industrial
- Blue,Black
- Other
- Yes
PV Series Injection Molding Machines Trade Information
- 5 Piece Per Week
- 8 Days
- Contact us for information regarding our sample policy
- All India
Product Description
With the assistance of our team of professionals, we are engaged in providing an assorted range of VT Series Injection Molding Machines. This machine is manufactured by our knowledgeable experts utilizing superior grade raw material with the aid of advanced technology. It is used in manufacturing and molding of several types of plastic bottles, PET containers, injections, jars, house-hold items, etc. This VT Series Injection Molding Machines is offered at the most reasonable rates to the clients.
VT Series Injection Molding Machines Silent Features
- Higher shot weight
- Large Distance Between Tie bar
- Enlarge Ejection Stroke
- Higher Ejection Force
- Proportional pressure control
- Proportional Speed Control
- Robust Mechanical Structure
- Precise Multi - Stage PID
- Temperature Control
Controller Features
- Intel Microprocessor
- Graphical LCD Display
- 32 Digital Inputs
- 32 Digital Outputs
- Data Retention for More than 10 Years
- Monthly Production History
- Statistical Quality Control Chart
- 30 Sets of Mould Memory
Specifications:
| Model Injection Unit | Unit | PS80P | PS120P |
PS150P |
PS180P |
| Screw Diameter | mm | 42 | 45 | 52 | 60 |
| Screw L/D Ratio | 21:1 | 21:1 | 20:1 | 20:1 | |
| Max. Swept Volume | cm3 | 255 | 325 | 475 | 725 |
| Max. Shot Weight | gms. | 243 | 317 | 467 | 678 |
| Max. Injection Pressure | kg/cm2 | 1250 | 1250 | 1250 | 1250 |
| Rate of Injection | cc/sec | 145 | 145 | 188 | 224 |
| Screw Speed | rpm | 200 | 200 | 165 | 150 |
| Screw Stoke | mm | 175 | 200 | 220 | 240 |
| Nozzle Force | tons. | 3 | 4:3 | 4.3 | 5.0 |
| Locking Unit |
Unit | PS80P | PS120P |
PS150P |
PS180P |
| Mould Clamping Force |
tons |
80 |
120 |
150 |
180 |
| Mould Clamping Stroke | mm |
300 |
325 |
400 |
450 |
| Mould Thickness (Min - Max) |
mm | 130 - 400 |
160 - 450 |
160 - 500 |
180 - 560 |
| Max. Day Light Opening | mm | 700 |
775 |
900 |
1010 |
| Space Between Tie Rod ( H x V) |
mm | 375 x 350 |
420 x 420 |
460 x 460 |
520 x 520 |
| Size of Platen(H x V) |
mm | 550 x 550 |
630 x 630 |
720 x 700 |
750 x 750 |
| Hydraulic Ejector | Unit | PS80P | PS120P |
PS150P |
PS180P |
| Ejector Motor |
mm |
80 |
100 |
130 |
130 |
| Ejector Force |
tons |
4.5 |
6.3 |
7 |
8 |
| General Specification |
Unit | PS80P | PS120P |
PS150P |
PS180P |
| Electric Motor |
HP |
12.5 |
20 |
25 |
30 |
| Heater Capacity |
HP | 7 |
11 |
15 |
15 |
| Total Connected Load |
HP | 19.5 |
31 |
40 |
45 |
| Tank Capacity |
ltrs. |
200 |
250 |
400 |
450 |
| Machine Weight |
tons. |
3 |
4.5 |
5.5 |
7 |
| Approx. Space ( L x W x H) |
mtr. |
3.75 x 1.5 x 3 |
5 x 1.5 x 3 |
6 x 2 x 2.2 |
6.7 x 1.4 x 2.3 |
Optional Features
- Variable Displacement Pump
- Chrome Plated Screw and ring Plunger Assy
- Shut off Nozzle
- Parallel Circuit
-
Enlarged Mould Thickness
VT series premium quality Injection Molding Machines are reliable , Power Efficient , consistent , proven in Indian market for Trouble free long life Operation with minimum Maintenance cost . Available in standard sizes of 30 Tons to 200 Tons with Microprocessor Controls and Proportional Flow / Pressure Hydraulics to ensure repeatability with high production rates . Machine with Thin walled application can be offered on request . With optional feature of Variable Delivery Pump - VDP , which enhance the performance of machine for fast cycle with great saving in Electrical Power . Extra wide Tie bar distances coupled with higher shot weight make machine more versatile to accommodate more numbers of Mould sizes . Less connected load makes oblivious choice of Pratishna Make machines.
Fully Automated Precision for Modern Industries
PV Series Injection Molding Machines stand out in the industry by combining complete automation with high-level computerized controls. Their robust design ensures repeatable accuracy, making them ideal for mass production environments where quality and reliability are paramount. These machines are optimized for a variety of plastic molding tasks, adhering to international standards for industrial equipment.
Versatile Voltage and Reliable After-Sales Support
Operating at voltages between 220 and 440 volts, the PV Series is adaptable to different industrial power requirements. Each machine is supported by a comprehensive warranty, providing confidence and security to manufacturers. The Indian manufacturer and supplier offer robust after-sales support and technical guidance, ensuring smooth operation and minimal downtime.
FAQ's of PV Series Injection Molding Machines:
Q: How do the PV Series Injection Molding Machines improve production efficiency?
A: The fully-automatic and computerized nature of the PV Series ensures quicker cycle times, consistent output quality, and minimal human intervention, leading to increased overall production efficiency.Q: What materials can these machines process for industrial applications?
A: The PV Series Injection Molding Machines are suitable for molding various thermoplastics and polymers typically used in industrial environments, offering flexibility in manufacturing.Q: When should maintenance be performed on these machines?
A: It is recommended to follow the maintenance schedule provided in the user manual, which includes routine checks and servicing after a specified number of operating hours or production cycles.Q: Where are these injection molding machines manufactured and supplied from?
A: These machines are manufactured and supplied by an established company based in India, ensuring local expertise and robust customer support.Q: What is the typical process for operating the PV Series machines?
A: Operators load the plastic material, set the required parameters on the computerized interface, and allow the automatic system to handle the molding process, resulting in precise, repeatable parts without manual intervention.Q: How does the warranty benefit users of these injection molding machines?
A: The included warranty provides protection against manufacturing defects and certain operational issues, giving users peace of mind and reducing potential downtime.Q: What are the primary advantages of selecting a computerized injection molding machine?
A: Computerized machines offer precise control over molding parameters, enhanced monitoring, easy process adjustments, and reliable, high-quality results, making them ideal for demanding industrial settings.Tell us about your requirement
